1-7/8 In. x 1-3/32 In. Carbide Tipped Reversible Glue Joint Bit

Code: 84505M

1-7/8 In. x 1-3/32 In. Carbide Tipped Reversible Glue Joint Bit Bosch 84505M

1-7/8 In. x 1-3/32 In. Carbide Tipped Reversible Glue Joint Bit

Code: 84505M

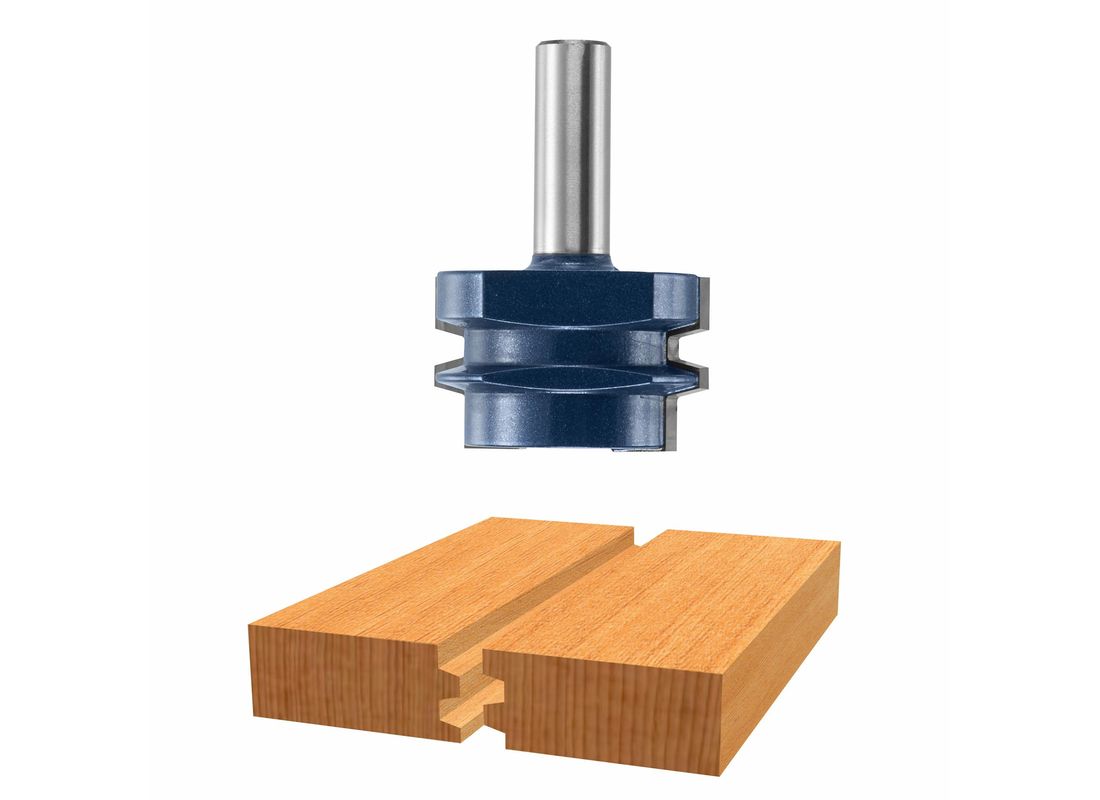

Premium-quality Micrograin carbide tips are ground on specialized CNC equipment for an extra-fine finish with maximum sharpness and edge retention. The reverse glue joint bit creates strong and self-aligning joints. When set up so the center of the bit profile aligns with the material center, cut one part face down and the mate face up for both halves of the joint. The fully hardened and tempered steel shank provides ultimate durability.
Need help?

* Prices are in Canadian dollars. Taxes and shipping not included.

Out of stock

Free shipping with order of $149.00 or more



Back to the products list
  • 1 Bit
  • A. Overall Diameter: 1-7/8"
  • B. Cutting Edge Length: 1-3/32"
  • C. Shank Diameter: 1/2"
  • D. Overall Length: 2-5/8"
  • Description: 1-7/8 In. x 1-3/32 In. Carbide Tipped Reversible Glue Joint Bit
  • Flute Length: 1.093
  • Number of Flutes: 2.0
  • Overall Length: 2.625
