12V Max EC Brushless Planer (Bare Tool)

CodeGHO12V-08N

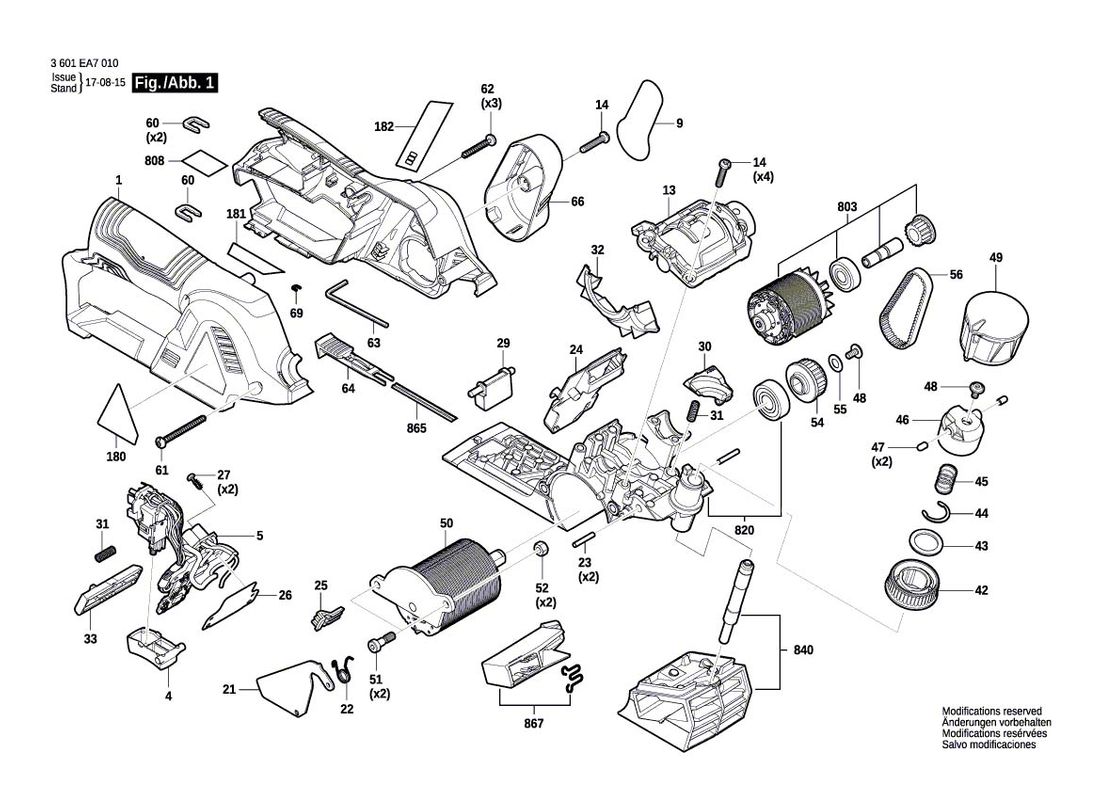

diagram 1 GHO12V-08N

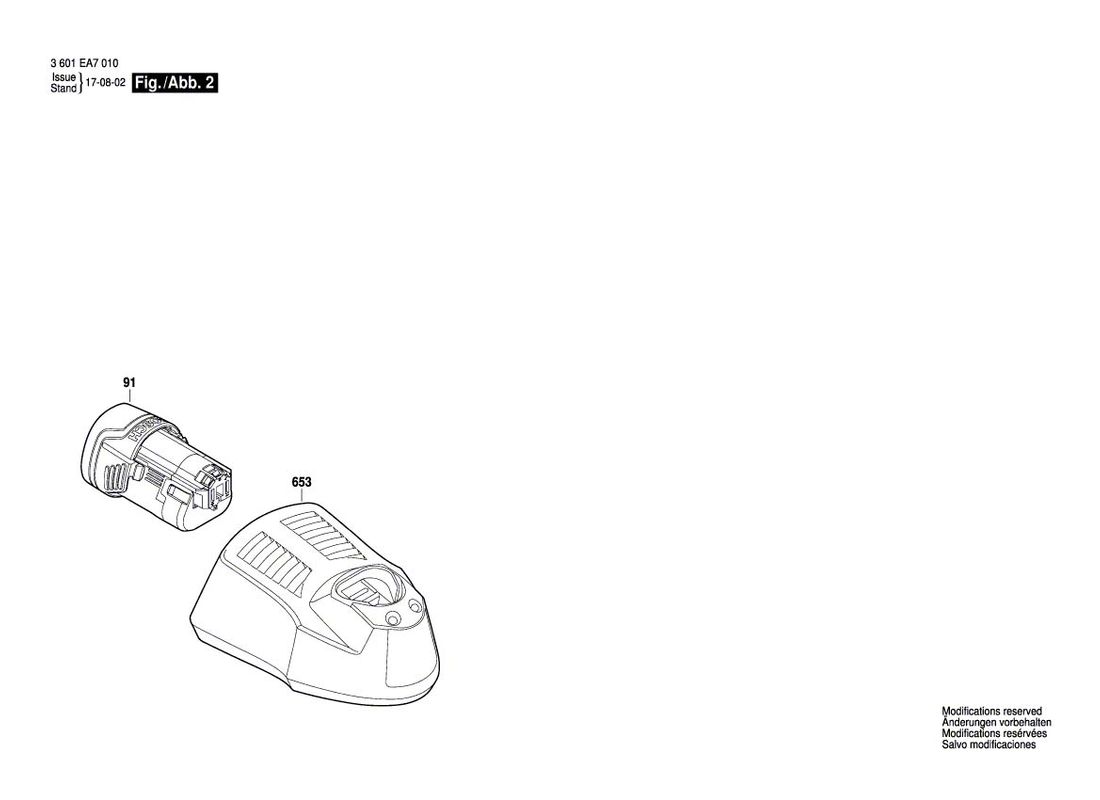

diagram 2 GHO12V-08N
  • diagram 1 GHO12V-08N
  • diagram 2 GHO12V-08N

12V Max EC Brushless Planer (Bare Tool)

Code: GHO12V-08N

The Bosch GHO12V-08N 12 V Max Planer is designed for powerful, balanced operation in an easy-to-handle, compact cordless planer. The first 12-volt Max planer on the market is about the same size as a hand planer, and it has a a 2.2 In. planing width and a single-pass planing depth of up to 0.08 In. It features an efficient EC Brushless motor for professional operation and smaller size. When planing at 0.04 In. depth in 1 In. hardwood, this compact powerhouse planer delivers up to 33 Ft. of planing per battery Amp hour (Ah). It is designed to provide the easiest planing experience for fast stock removal and smooth finishes. It is ideal for trimming doors because it is cordless, eliminating the possibility of running out of cord in the middle of a planing pass. This is a bare-tool kit; the battery and charger are sold separately.

Free shipping with order of $149.00 or more

Pos. Part Description Qty Price
1 2605105221 1 $16.62
4 2607200714 1 $1.89
5 16072335D3 1 $108.17
9 160111C24U 1 $2.29
13 2609270035 1 $1.89
14 2603410051 Thread-forming tap. Screw 5 $1.14
21 2600034008 1 $1.89
22 2604651034 1 $1.14
23 2917850080 2 $1.14
24 2609270036 1 $1.89
25 2604448382 1 $1.14
26 2600707082 1 $9.60
27 2603490017 Torx Oval-Head Screw 2 $1.14
28 2604651035 1 $1.14
29 2605411242 1 $1.89
30 2605191328 1 $1.14
31 2604690055 Compression Spring 2 $1.14
32 2600148020 1 $1.14
33 2607200715 1 $1.89
42 2600327009 1 $1.89
43 2916190108 1 $1.14
44 2600116099 1 $1.14
45 2604610156 1 $1.14
46 2600327008 1 $2.29
47 2600590006 Ratchet Cap 2 $1.89
48 2609200575 2 $1.14
49 2600451010 1 $2.86
50 2606338002 1 $108.17
51 2609200574 2 $1.89
52 2915011038 2 $1.14
54 2606625041 1 $4.93
55 2918750129 Spring Washer 1 Please contact us for the price and availability
56 2604736018 1 $4.33
60 2609004706 2 $2.86
61 2603490027 Lens Head Screw 1 $1.14
62 2603490024 Torx Oval-Head Screw 3 $1.89
63 1907950003 Offset Screwdriver 1 $3.37
64 2608042054 1 $1.89
66 2605500230 1 $2.29
69 2609004274 1 $1.14
91 2607337237 1 Please contact us for the price and availability
180 2601120019 1 $2.29
181 160111A54N 1 $2.29
182 2601120018 1 $2.29
653 2607225519 1 $21.92
684 2605411243 1 $18.66
685 1600A012LX 1 $4.93
803 1607000CH4 1 $82.31
808 160111A54P 1 $2.29
820 1607000CH7 1 $44.67
840 1607000CH8 1 $36.99
865 1600A01953 1 Please contact us for the price and availability
867 1607000CJ0 1 $4.93
